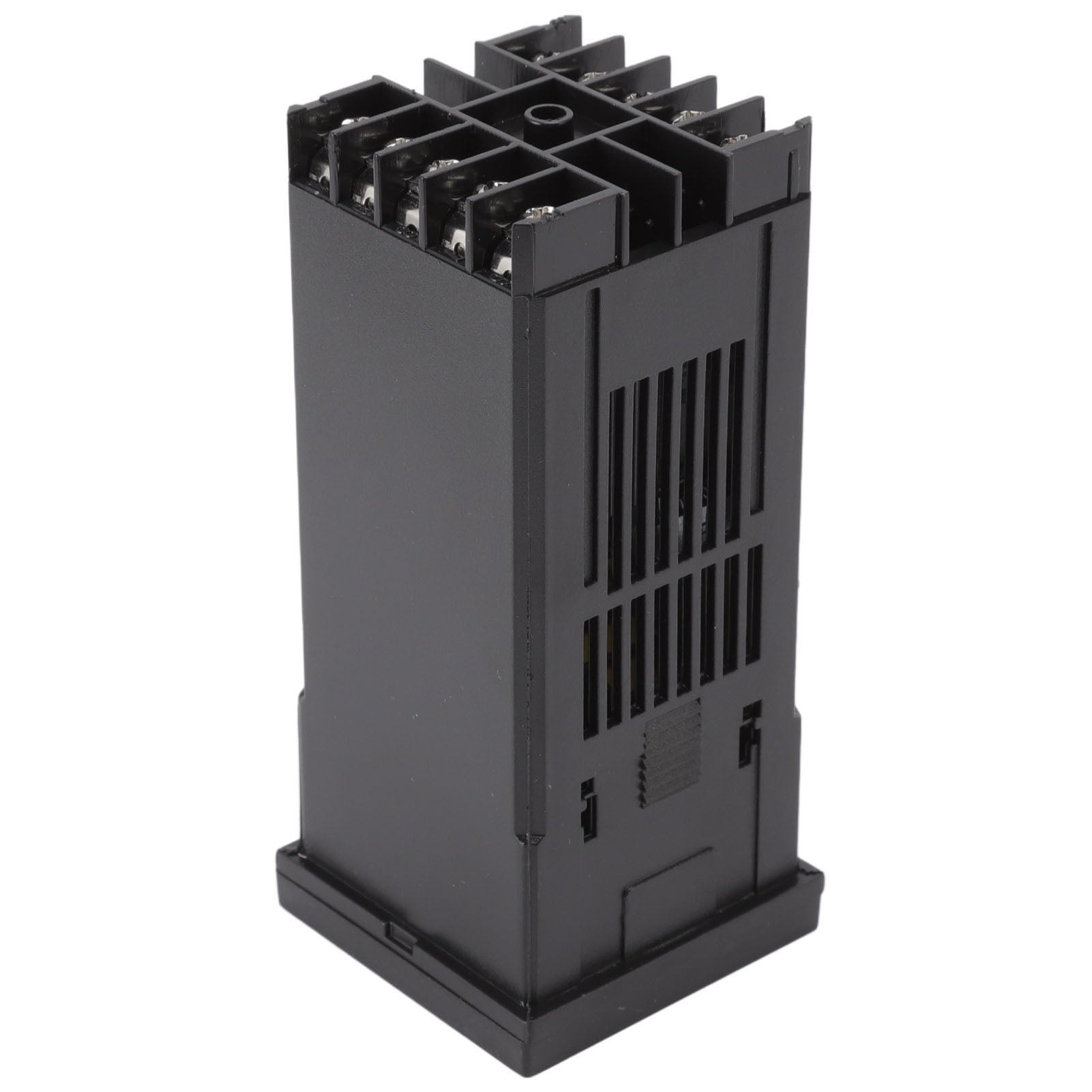

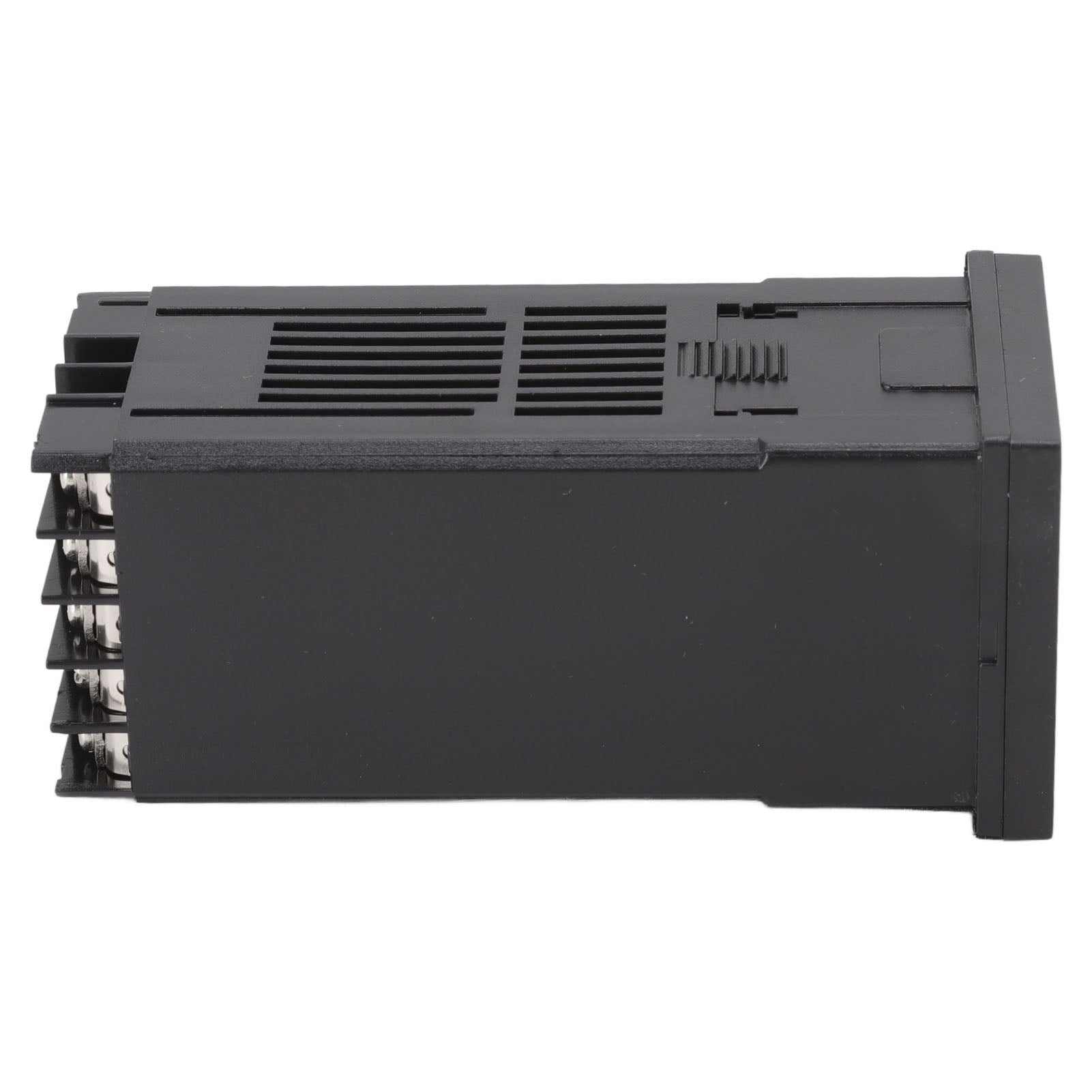

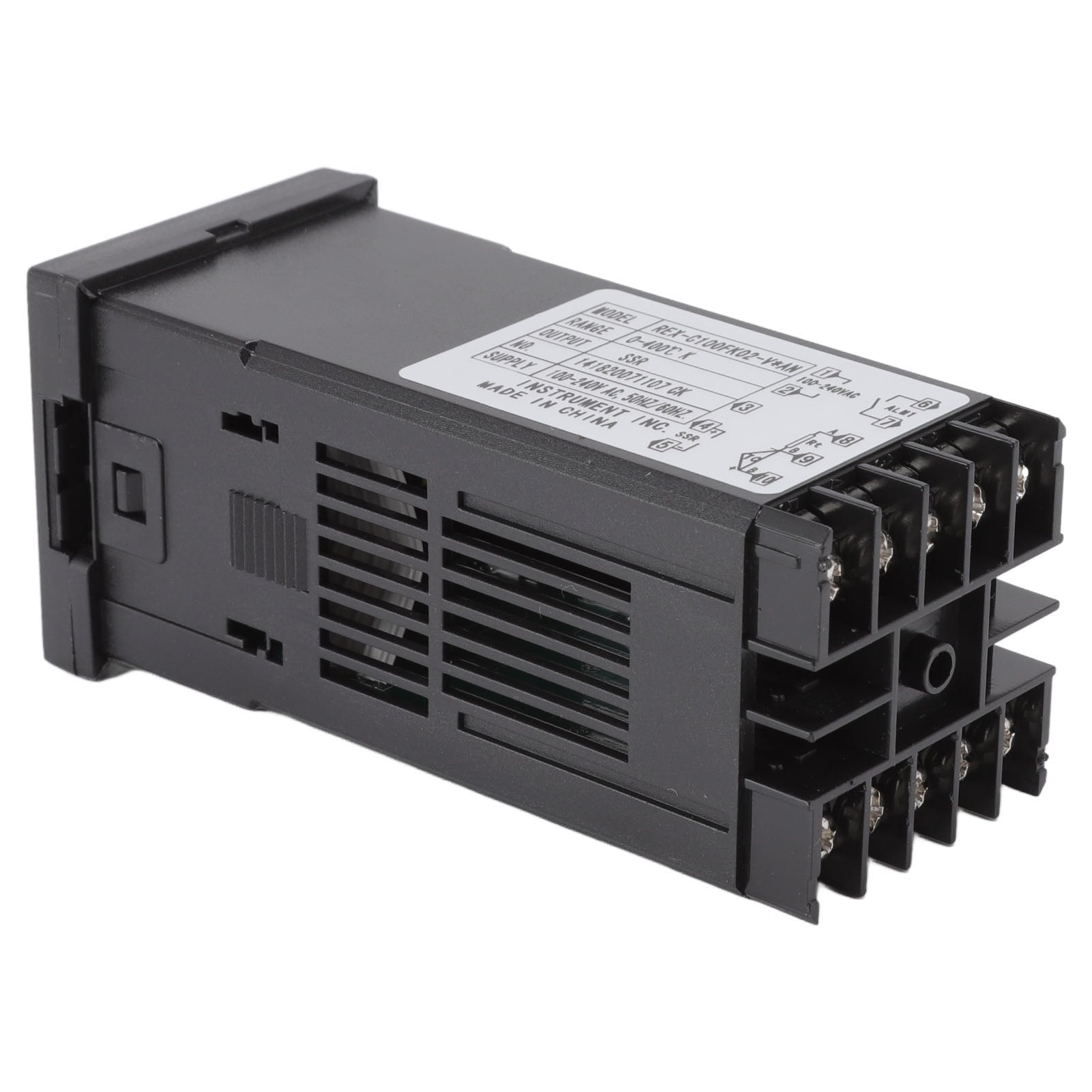

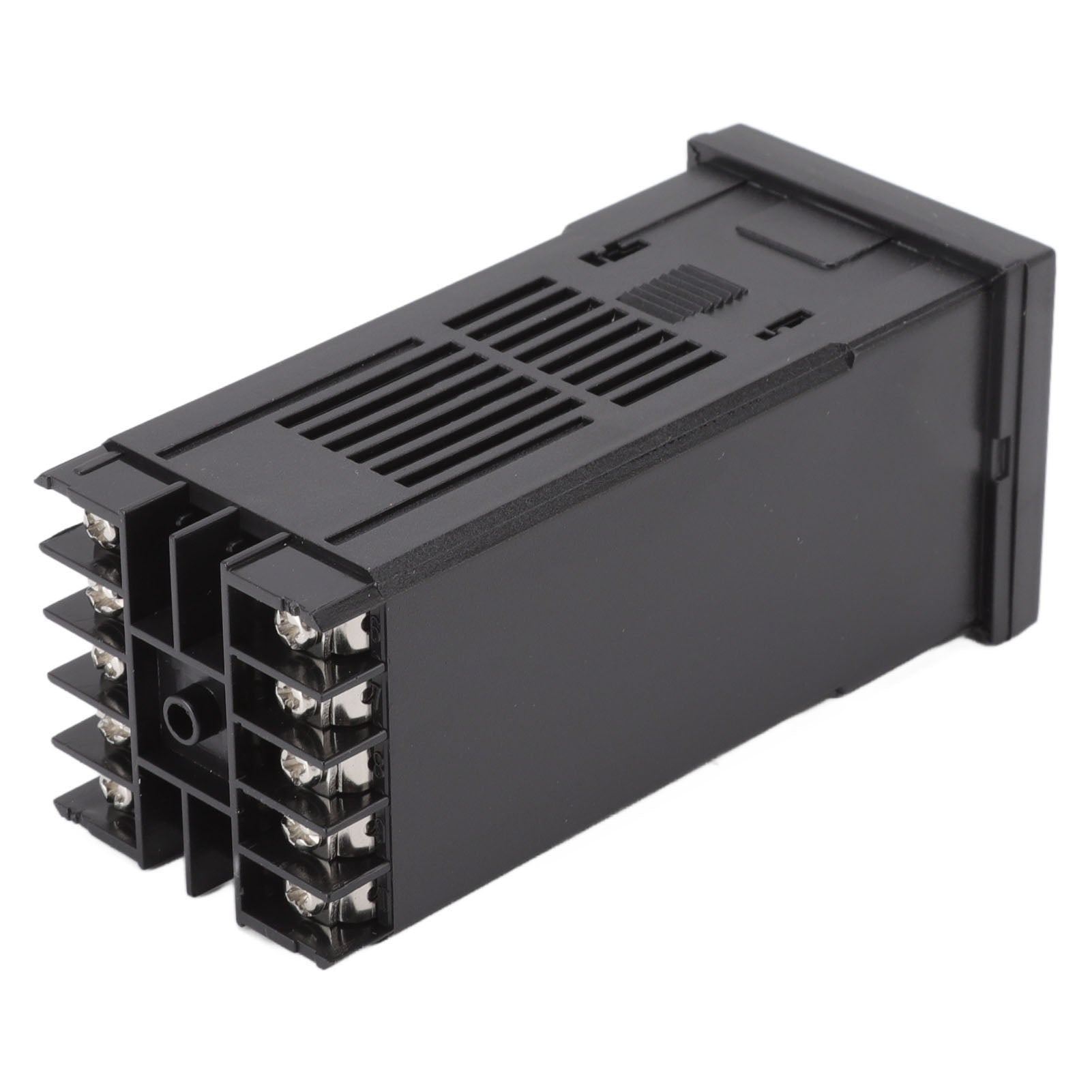

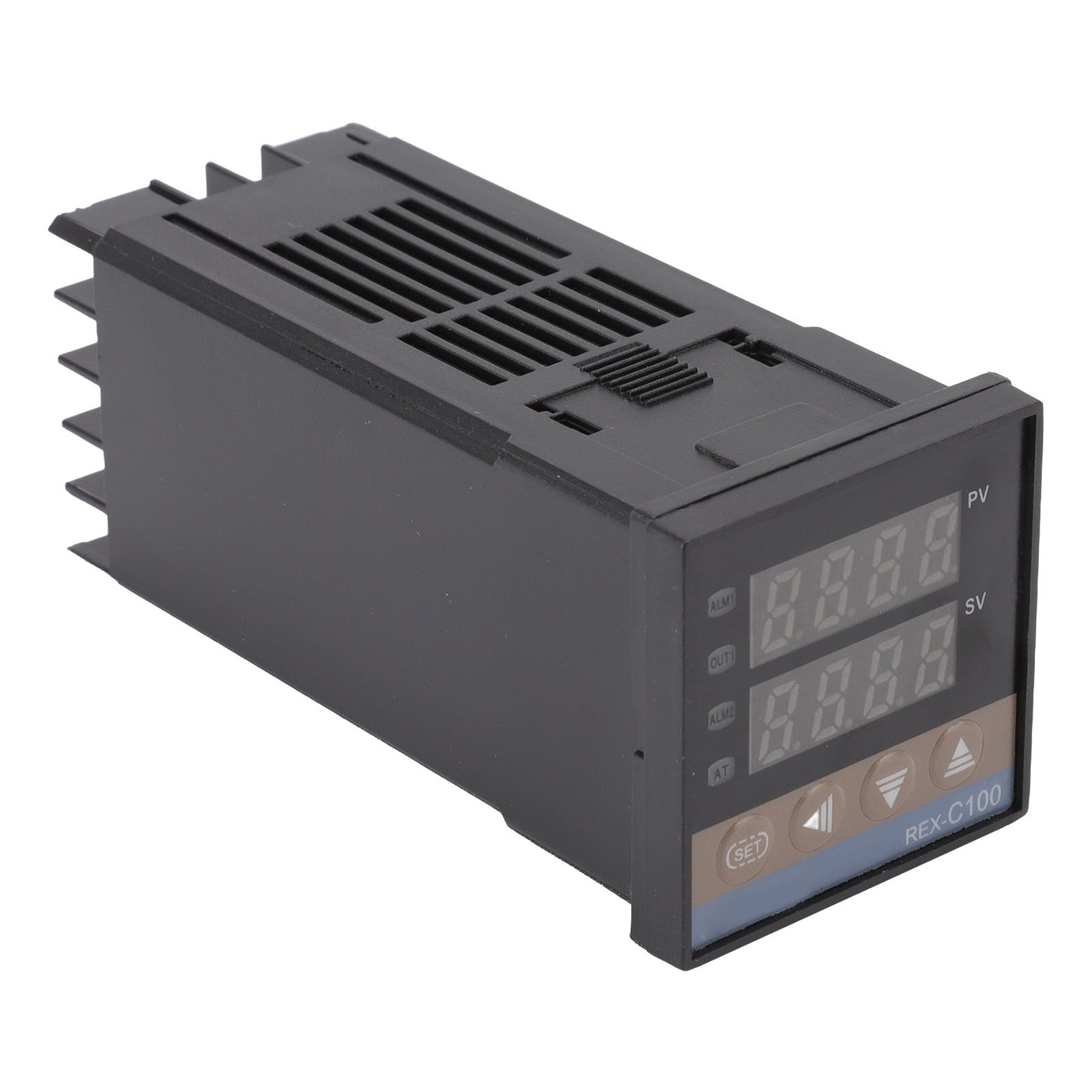

PID Thermostat Temperature Controller， Intelligent Small Overshoot Fast Temperature Control Farm Digital Temperature Controller for Incubator for Chicken Coop 25A，40A
Specification:
Item Type: PID Thermostat Temperature Controller
Material: Plastic
Model: For REX C100FK02 V X AN
Measurement Error: 1% + 1 Word， 0.5% ± 1 Word， 0.2% ± 1 Word Three Grades
Additional Cold End Compensation Error: Within The Range Of 0-50 degrees Celsius ， Less than or equal to ± 2 degrees Celsius ， Temperature Coefficient Less than or equal to 0.05% degrees Celsius
Resolution: 14 Bits
Sampling Period: 0.5 Seconds
Power Supply: AC 100-240V 50 60HZ
Process Value PV， Set Value SV
PIN Control Including ON OFF， Step PID And Continuous PID
Thyristor Trigger Bur Number: 15 40μS Or Rated 100mA， Instantaneous 1A Self Triggering
Relay Output Contact Capacity: 3A 220V， Resistive Or Specified
Solid State Relay Output Signal: 15， 3V 3 0mA
Measurement Digital Display Range: -1999-9099， -199-9999
Proportional Band P: 0 - Full Range ON OFF Control Set To 0 When
Detection Temperature Range: 0-400 degrees Celsius
Insulation Resistance: > 500M Ohm 500V DC
Insulation Resistance: 1500V AC Per Min
Insulation Resistance: Power Consumption <10VA
Service Environment: 0-50 degrees Celsius
Non Corrosive Gas Environment 30-85%
Appearance Size: Approx. 48x48x110mm / 1.9x1.9x4.3in
Scope Of Application: Electric Power， Chemical Industry， Injection Molding， Packaging， Food， Incubator， Oven， Heater Control， Etc.
K Type Thermocouple Probe Cable
Length: Approx. 1m/3.3ft
Sensor Diameter: Approx. 4.5mm/0.2in
Temperature Range: 0-400 degrees Celsius
Inner Insulation: Glass Fiber
External : Insulation
Solid State Relay
Output Voltage Range: Standard Type
Input Voltage: DC 3-32V
Output Voltage: 24-380V AC

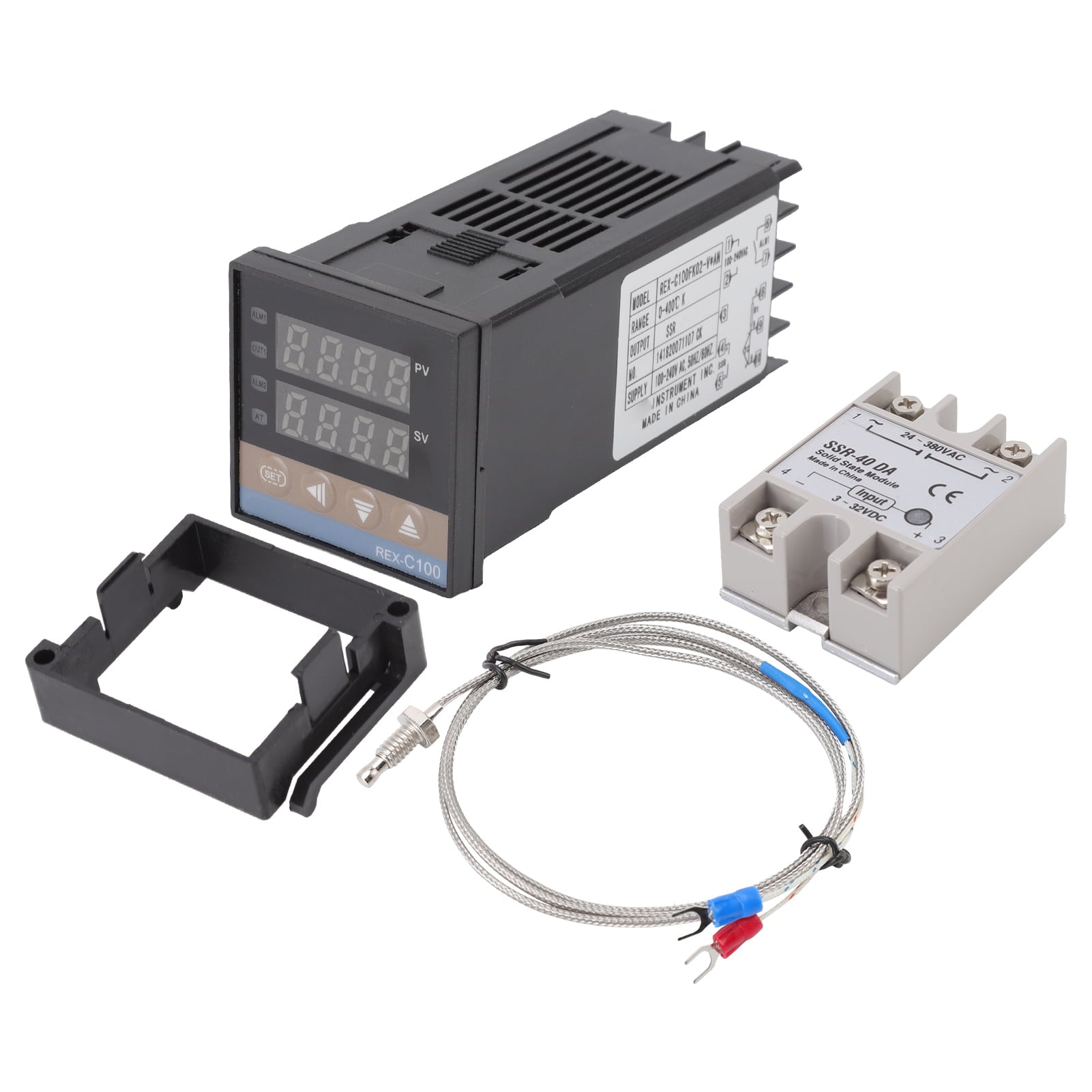

Package List:
1 x PID Thermostat Temperature Controller

1 x Thermocouple

1 x Relay Module

1 x Thermostat Bracket

1 x Chinese and English Manual

Note:

• PID TECHNOLOGY: PID thermostat temperature controller adopts industrial grade professional self tuning PID technology， with fast temperature control， ， small overshoot and high precise.
• APPLICATION SCENARIOS: Digital temperature controller is widely used in farm breeding， chicken coop， electric power， chemical industry， injection molding， food， incubator， oven and other equipment.
