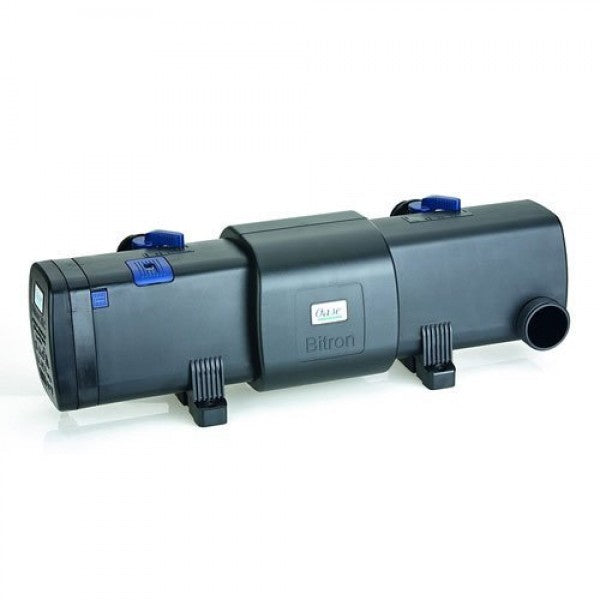

The Oase Bitron 110C UV Clarifier has a special bypass regulator which gives it the advantage to maintain the balance of any pond environment. It has a integrated automatic cleaning mechanism that keeps the UV lamp's quartz cover clear and free of deposits， sot the UV light's intensity remains of full strength throughout without additional maintenance. The automatic cleaning mechanism is always on and does not use additional energy. it is powered by the water flow around the quartz glass tube and prevents sludge or algae from forming deposits. Integrated permanent magnets help prevent calcium deposits and guarantee long periods of operation without maintenance.

A lamp inspection window is standard on all Bitron 110C clarifiers. It has one inlet and two outlets and are compatible with all Oase Biotec filters.

• Bitron 110C UV Clarifier 110 Watt
• Max. Pond Size - 36000 gal.
  (Ponds with plants but without fish)
• Max. Pond Size - 18000 gal.
  (Ponds with plants and fish up to 1" of fish per sq. ft. of water surface area)
• Max. Pond Size - 9000 gal.
  (Ponds with Koi)
• Max Flow Rate - 11000 GPH
• Max. Flow Past UV - 1700 GPH
• Max PSI - 14.5 psi/ 34' of Head

• Watts - 110

• Inlet Threaded -  2"
• Outlet Threaded - 2" x (2)
• Inlet / Outlet Size of Hosetail - 1/4， 1"， 1 1/4"， 1 1/2"， 2"
• Cord Length - 15'
• Dimensions (L x W x H) - 29" x 9" x 8"

• Warranty - 2 Year

Click here for Bitron UV Clarifier Manual



Automatic Cleaning System The Automatic Cleaning System is continuously powered by the water flow through the clarifier	Inspection Window The UVC light can be checked through the inspection window
Bypass Regulator Regulates the water flow between the UVC light and bypass system	Sealing Technology All Bitron devices can be opened simply without tools for changing bulbs
