Definitive Technology Reference White In-Ceiling Speaker - UIWRCSII (UDSA)

High performance home audio is an experience to savor. With the RCS II， great sound that all but disappears is what makes these in-ceiling speakers so special. The technologies involved with producing the amazing audio took decades to perfect， but will only take you milliseconds to appreciate.

Key Features:

• Wave Launch™ technology makes your ears think the in-ceiling speakers are right in front of you
• Two cast basket drivers and pressure-coupled Low Bass radiators bring deep bass and high punch
• Pure aluminum dome tweeter produces pristine high frequencies
• Minimized visibility puts the focus on sound quality rather than the speaker

Features:

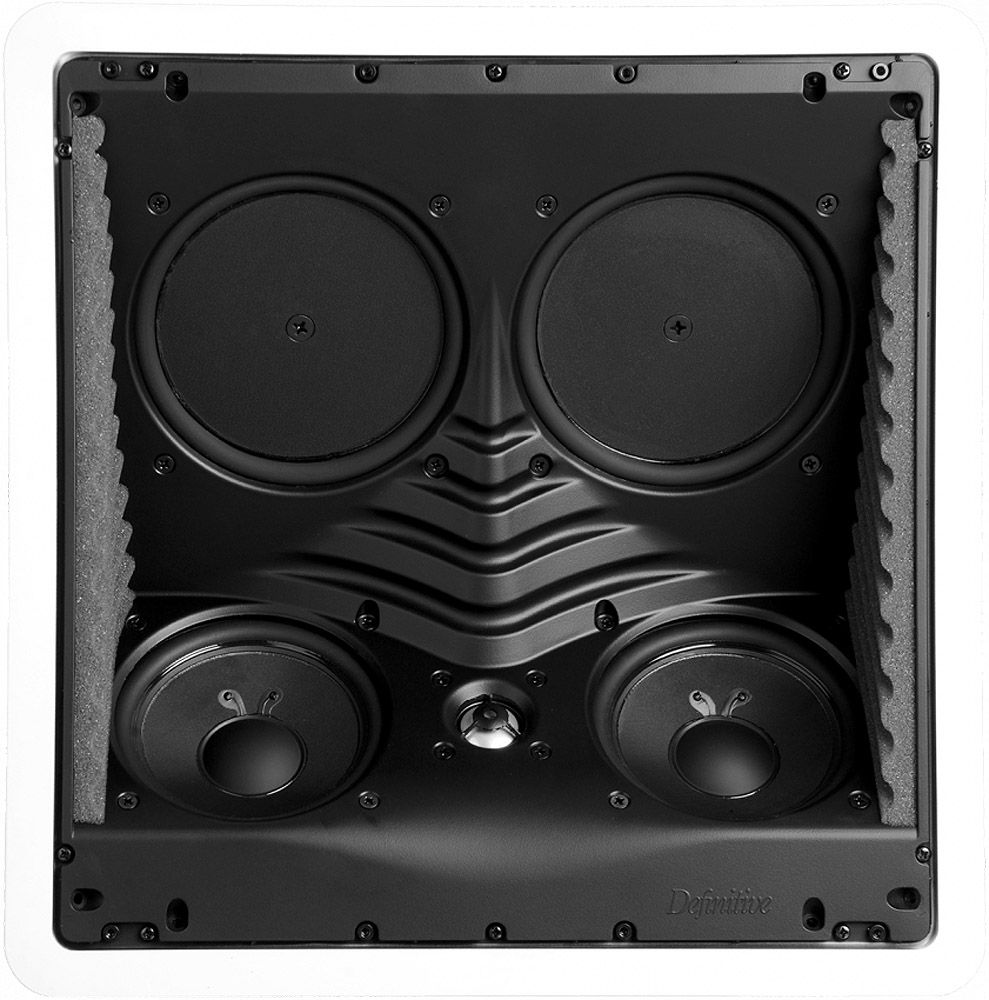

• Down-Angled Driver Array
  RCS II speakers have a D'Appolito driver array aimed at the listening area， which includes two cast-basket bass/midrange drivers and a pure aluminum tweeter
• Uniquely Effective Acoustic Treatment
  Precisely configured dual angled baffles， a computer-optimized ribbed surface and dampening panels achieve linear uncolored sound that seems to float in space
• High Praise for the Low End
  The active driver/bass radiator combination achieves a deep， dynamic low-frequency response that blends with a subwoofer for a quality other in-ceiling systems haven't seen
• Easily Installed High Performance
  Non-resonant sealed medite enclosures are inert and free of vibrations， with six rotating dogleg clamps and beefy wood screws for easy， secure installation

Specifications:

General

• Total Pieces: 1
• Orientation: Square
• Driver Complement
  • (1) 1" (2.54 cm) d (Round) Tweeter - Tweeter
  • (2) 5.25" (13.34 cm) d (Round) Midrange - Tweeter
  • (2) 6.5" (16.51 cm) d (Round) Bass Radiator - Tweeter

Inputs

• Speaker Inputs: (1) Pair of Heavy Duty， Spring Loaded - Gold-Plated

Audio Quality

• Power Output: 10 – 250 watts
• Total Frequency Response: 22 Hz → 30 kHz
• Max Sensitivity (1 watt @ 1 meter): 92 dB

Included Accessories

• (1) Wall Mounting Template
• (1) Paint Mask

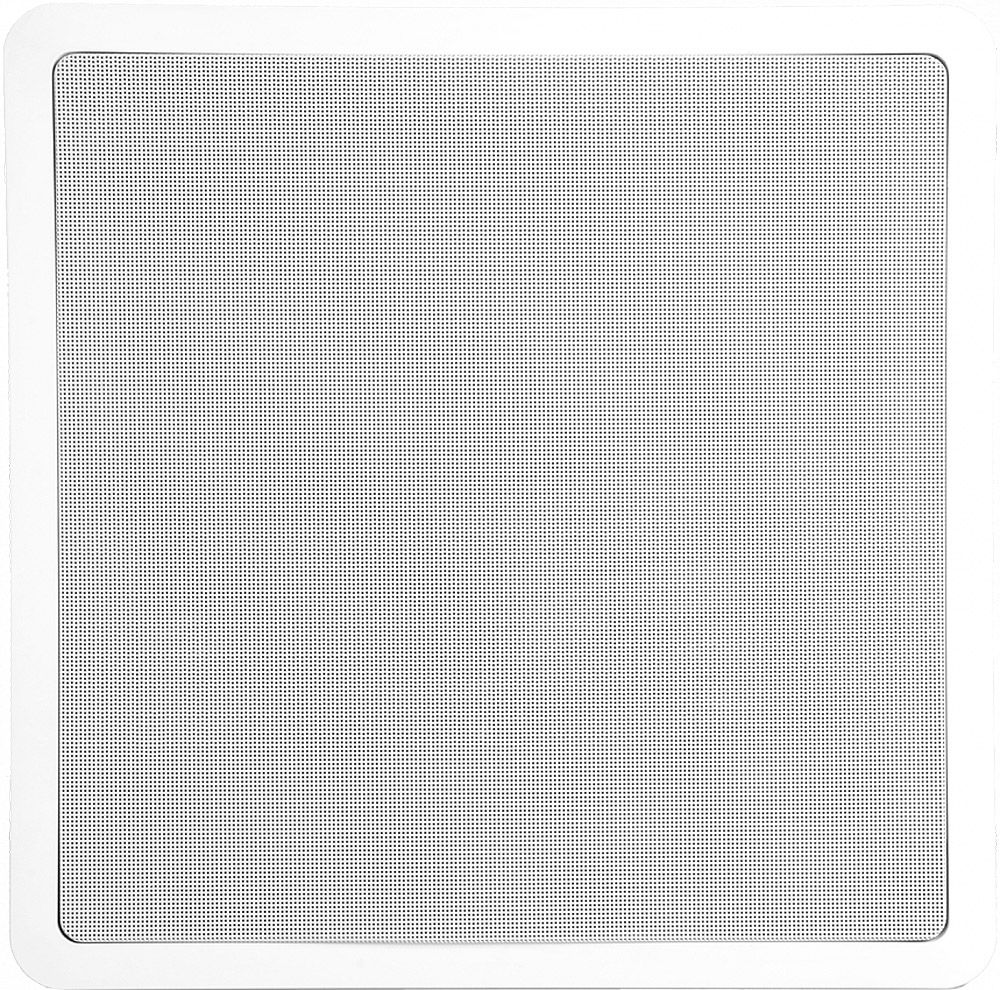

• (1) Paintable Grille
• (1) Self Adhering Foam Gasket

Approximate Dimensions:

• Height: 15.5"
• Width: 15.5"
• Depth: 5-7/8"
• Cutout
  • Height: 14-3/8"
  • Width: 14-3/8"

Approximate Weight:

• Shipping: 22 lbs

Warranty Information:

• Manufacturer Warranty (authorized online retailer):
  • 5 Years Cabinet Warranty
  • 5 Years Drivers Warranty
