Bowers & Wilkins CCM7.3 S2 FP41084 White In-Ceiling Loudspeaker (Sold As Each)

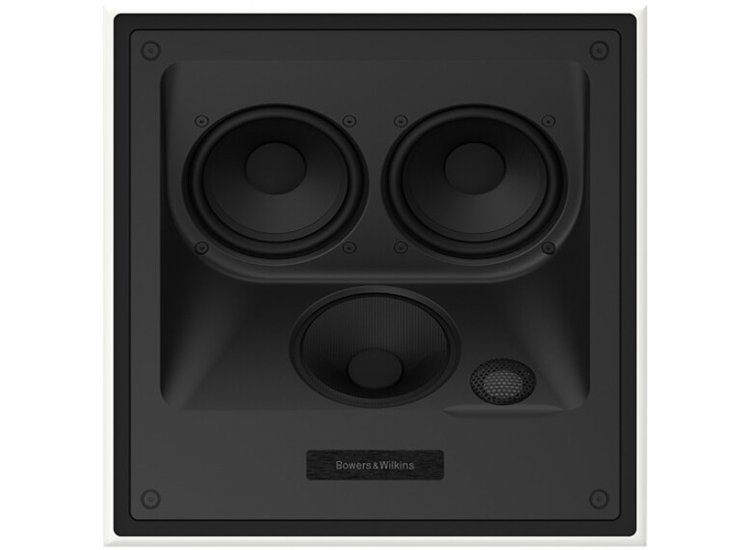

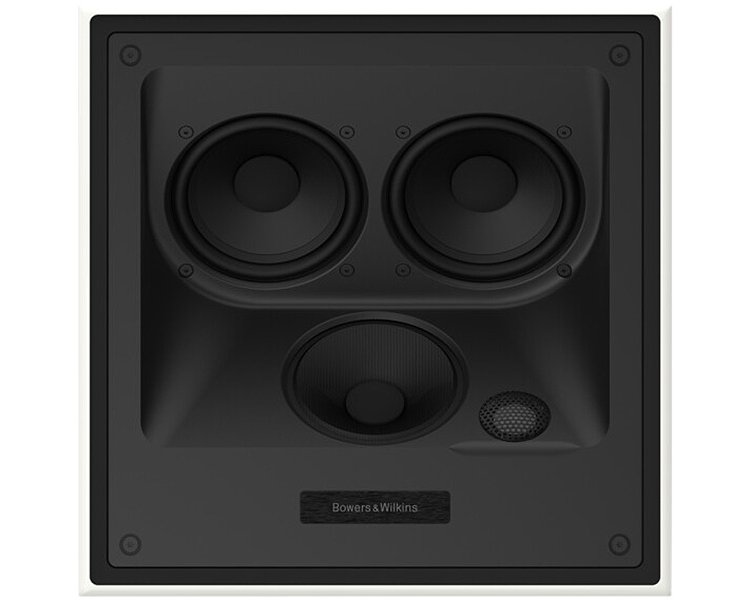

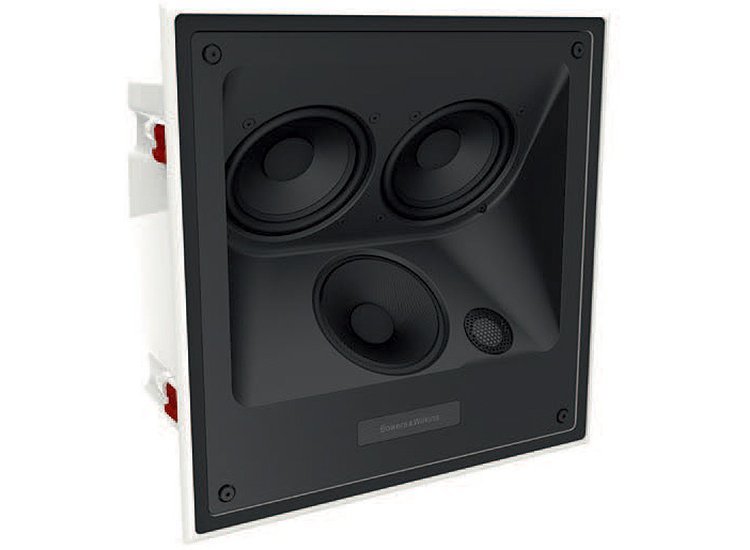

The CCM7.3 S2 is a high-performance in-ceiling speaker for outstanding performance in both theatre and stereo applications. Its sophisticated drive unit configuration features a 25mm(1in) Carbon Dome tweeter， a 100mm (4in) FSTTM Continuum cone midrange and 2 x 130mm (5in) Aerofoil Profile bass drivers. Its critically formed baffle is constructed from glass reinforced ABS while its integrated backbox ensures easy retrofittable installation， cuts down sound transfer between spaces and optimises sound quality.

Specifications

• Description: 3-way in-ceiling system
• Technical Features
  • Carbon Dome tweeter
  • Continuum cone FST midrange
  • Aerofoil profile bass cones
• Drive units
  • 1x 25mm (1") Carbon Dome high-frequency
  • 1x 100mm (4") Continuum cone FST midrange
  • 2x 130mm (5") Aerofoil profile bass
• Frequency range (-6dB): -6dB at 52Hz and 33kHz
• Frequency Response -3dB: 55Hz - 28kHz ±3dB
• Sensitivity: 90dB spl (2.83Vrms， 1m)
• Impedance Nominal (min): 8 Ohm (Minimum 3.1 Ohm)
• Recommended amplifier power: 25W - 200W into 8 Ohm on unclipped programme
• PMK: 7C


Approximate Dimensions

• Frame
  • Height: 14"
  • Width: 14"
• Cutout
  • Height: 13.1"
  • Width: 13.1"
  • Height With PMK: 13.2"
  • Width With PMK: 13.2"
• Protrusion: 0.3"
• Depth: 7.66"

Approximate Weight

• Unit: 19.84 lbs
• Shipping: 23 lbs
