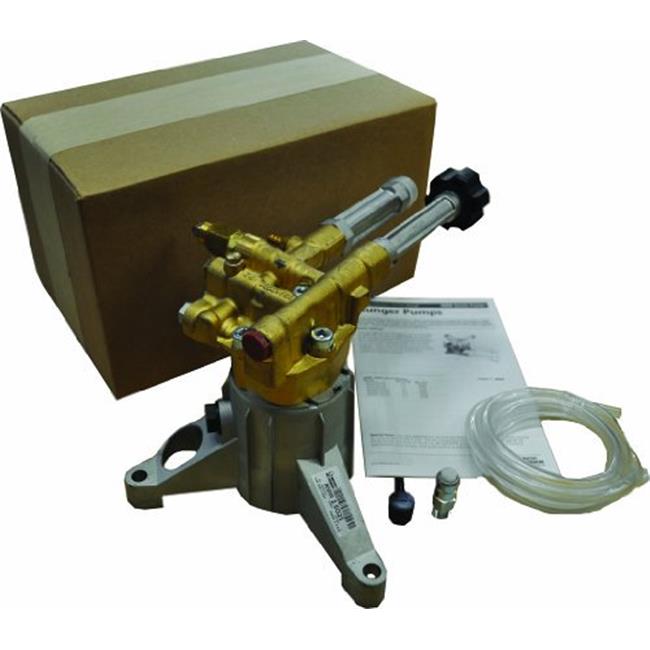

Name: AR North America SRMW22G26-EZ-PKG Economy Axial Radial Pump
Brand: Sears
Price: 43.31 USD
Availability: InStock

RMW 3400rpm.

D Version 7/8-Inch.

Vertical Gas Engine Flange.

Manifold: Aluminum precision die cast special anticorrosion finish.

Bolts: Three 6mm cadmium plated steel.

Plungers: hardened stainless steel.

Crankcase: Orecision die cast， large coupling fins.

Bearings: Premium oversized ball and needle bearings.

Valves， Seats and Springs: Plastic poppet under 2300 psi， stainless steel poppet over 2300 psi， seat and cage， stainless steel spring.

Seals: buna-N 2000 and 2400 psi single seal， 2500 psi to 3000 psi dual seals.

SX suffix port rotated 180 degrees from standard.- SKU: NRTHAM003

This S version of the vertical flange plunger pump for pressure washers has upgraded valves to improve functionality
Axial radial design with Easy Start Valve (EZ)， thermal relief valve， and integral regulating valve
Features an optional system for detergent suction
With a 3-piston alternating volumetric build， the pump can be coupled to a variety of motors
For more efficiency， the intake valves were placed above the pistons
Sealing system features a double gasket
Features 2 bearing systems in support of the pistons and pump shaft
Tempered steel pistons driven by a swash plate mechanism
Constructed out of strong die cast aluminum alloy with steel and brass parts
Specifications:
Max PSI: 2600 PSI
Max GPM: 2.2 GPM
Oil capacity: 2.2 ounces
RPM: 3400 RPM
Max temperature: 140 F
Outlet: 22 mm x 1.4 M
Inlet: 0.75 inch GHA
Crankshaft ID stamp: 1
Shaft version: D
Shaft type: Hollow
Shaft size: 7/8 inches
Stroke: 9.7 mm
Bore diameter: 12 mm
Power EBHP: 3.9
MaxBar: 173
Weight: 7.7 pounds
Manufacturer warranty: 1-year warranty
