Key Features

• Stainless Steel 17-7ph Whip (Replacement Whip #234)
• Stainless Steel Housing
• Nickel plated support
• UV resistant Cap
• All connections soldered
• Compression Whip retainer
• 8 oz total weight
• SO-239 Connector
• Lifetime on antenna coil

Technical Specifications

• SWR Less than 1.2:1
• 1/2 Wavelength， Shunt Fed
• Frequency Range 156-163 MHz (includes NOAA Weather Radio Frequencies)
• Whip length 34 inches
• No Ground Plane Needed

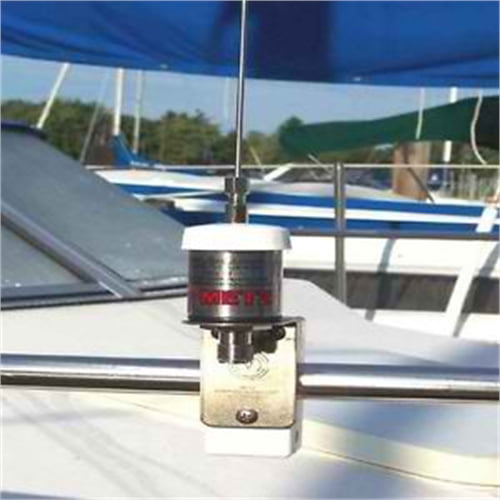

Product DescriptionVHF SAIL/MOTOR CRAFT ANTENNA provides alternate to large white fiberglass antenna for VHF/FM marine radios. Slim. Stainless steel 34" whip mounted to nickel plated post into 1-1/2" stainless steel coil. Outperforms conventional 54" 3db gain fiberglass antennas. Used by the USCG for search and rescue missions. Features stainless steel 17-7 ph whip， UV resistant cap， soldered connections， stainless steel housing， 250 watt power rating， 1/2 wave length-shunt fed， compression whip retainer， nickel plated support， low angle of radiation， lightning protection， internal ground， #16 AWG windings， epoxy filled coil， "O"-ring weather seal， SO-329 connector， stainless steel bracket and a SWR of less than 1.2:1. No ground plane is needed. Ideal for racing and is pretuned to marine band. Stores easily.
